ASTM A213 T36 alloy seamless pipe supplier

ATM A213 standard covers seamless ferritic and austenitic steel boiler, superheater, and heat-exchanger tubes.
UNS Designation: K21001

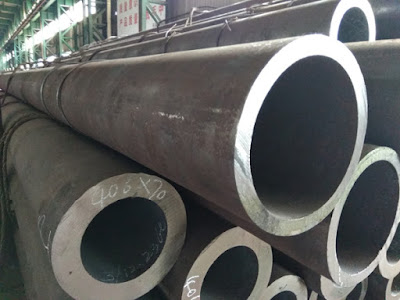

ASTM A213 T36 alloy steel seamless pipe for boilers, superheater, and heat-exchanger
ASTM A213 T36 alloy seamless pipe supplier, offer ATM A213 grades T5, T9, T11, T21, T22, T36, T91, T92, TP304, TP304L, TP309S, TP309H, TP310S, TP310H, TP316, TP316L, TP316H, TP321, TP321H, TP347, TP3147H pipe.


Chemical Composition(%) of A213 T36 seamless pipe

Carbon: 0.10–0.17, Manganese: 0.80–1.20, Phosphorus: 0.03, Sufur: 0.025, Silicon: 0.25–0.50, Nickel: 1.00–1.30, Chromium: 0.3, Molybdenum: 0.25–0.50, Vanadium: 0.02, Niobium: 0.015–0.045, Nitrogen: 0.02, Aluminum: 0.05, Cu 0.50–0.80
Mechanical properties for ASTM A213 T36 seamless pipe
Tensile strength(min): 415Mpa
Yield strength(min): 205Mpa
Elongation: 30%
Hardness, HB: 163max

ASTM A213 T36 alloy steel seamless pipe test

Flattening Test—One flattening test shall be made on specimens from each end of one finished tube, not the one used for the flaring test, from each lot
Flaring Test—One flaring test shall be made on specimens from each end of one finished tube, not the one used for the flattening test, from each lot
Hydrostatic or Nondestructive Electric Test—Each tube shall be subjected to the nondestructive electric test or the hydrostatic test. The type of test to be used shall be at the option of the manufacturer, unless otherwise specified in the purchase order.
